1. Configuration Viewer
Provides a navigable panel structured around system settings, physical/logical interfaces, zones, static routes, DHCP scopes, and credentials.
- Interactive KPI Cards for metrics dashboard navigation
- Live compliance telemetries for weak host setups
- HA clustering visual mapping layout
2. Firewall Policy Architect
Design new configurations and rules via an interactive builder, generating copy-pasteable FortiOS CLI scripts on the fly.
- Interactive source/destination mappings
- UTM sensor profile drilldowns
- Shadow and redundancy verification
3. High-Speed Syslog Receiver
A built-in client UDP socket receiver that processes standard FortiGate logs directly on port 514 & Secure port 6514.
- Dynamic log buffer limits (200 - 2,000 logs)
- Background process suspension to save resources
- Raw CSV / text exporting controls
4. Remote Access Dashboard
Aggregated analytics workspace tracking SD-WAN interfaces, latency metrics, and IPsec VPN tunnel negotiations.
- Real-time SLA health metrics with sparklines
- IKE negotiation negotiation log timelines
- Per-tunnel data transit distributions

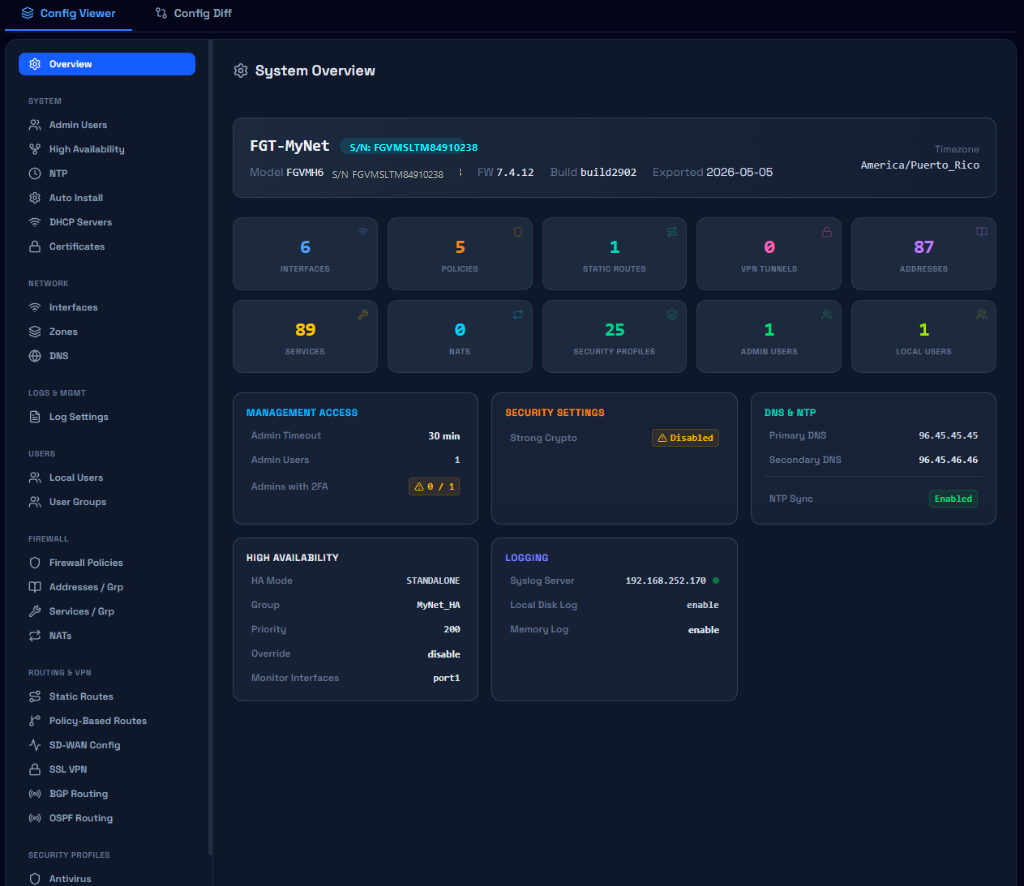

Configuration Viewer & System Overview
Navigate your system configuration through structured navigation. Access physical/logical interfaces, zone bindings, DHCP scopes, HA clustering states, and local security configurations instantly.

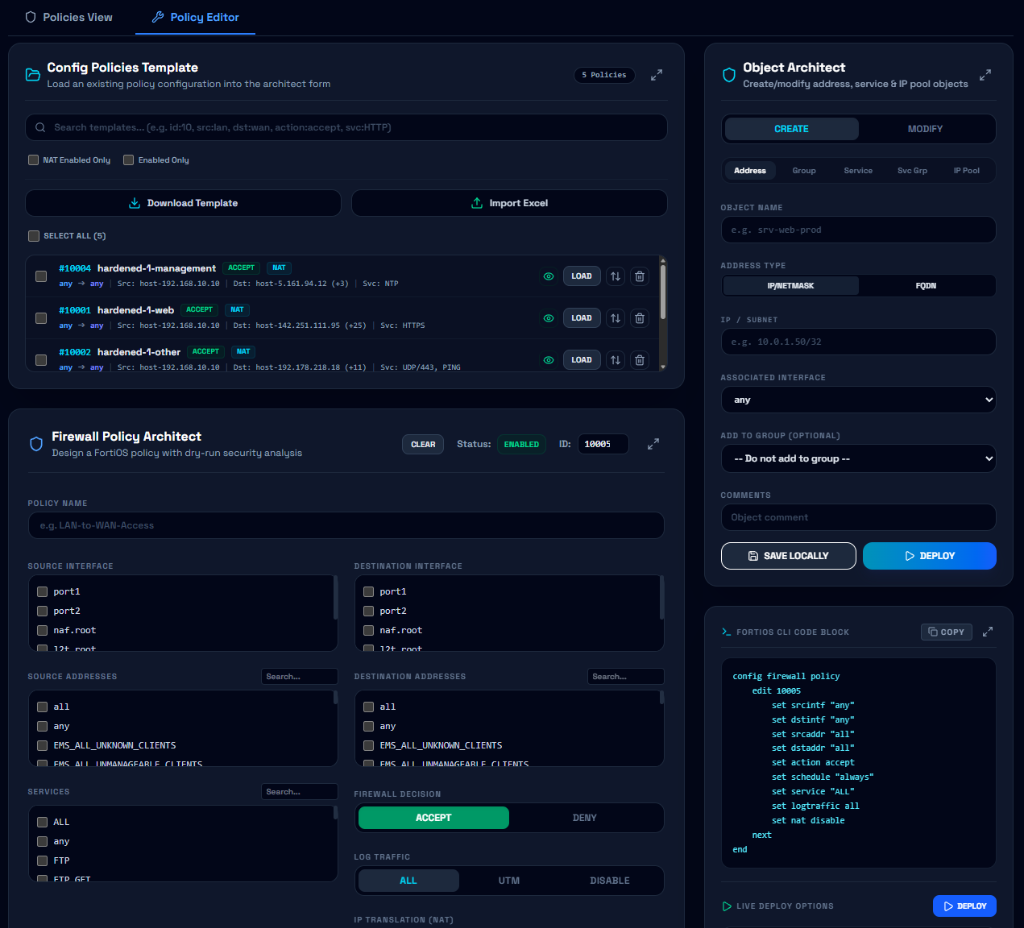

Firewall Policy & Object Architect
Build, template, and dry-run FortiOS policies. Design routing pathways, compile reusable address objects, and generate CLI blocks dynamically.

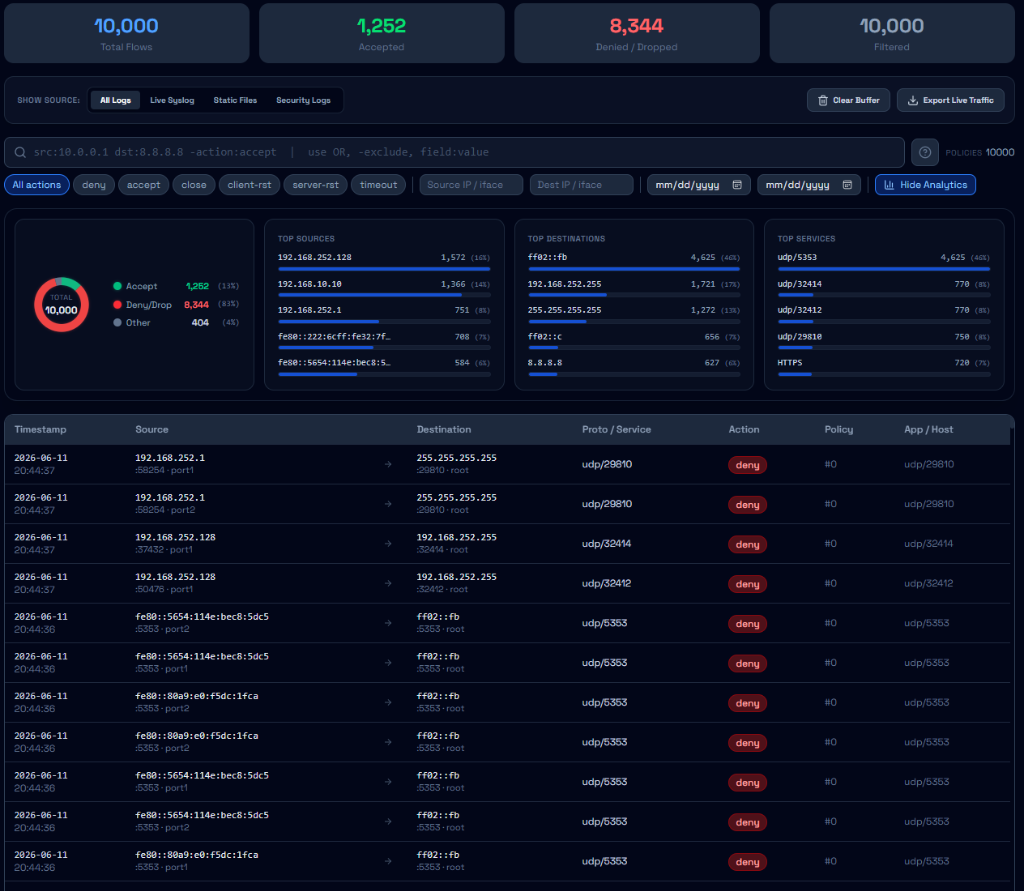

Live Syslog & Traffic Flow Analytics
FGT Config Visualizer features a built-in UDP client socket to parse standard syslog packets in real-time, mapping active flows and categorizing traffic types instantly.

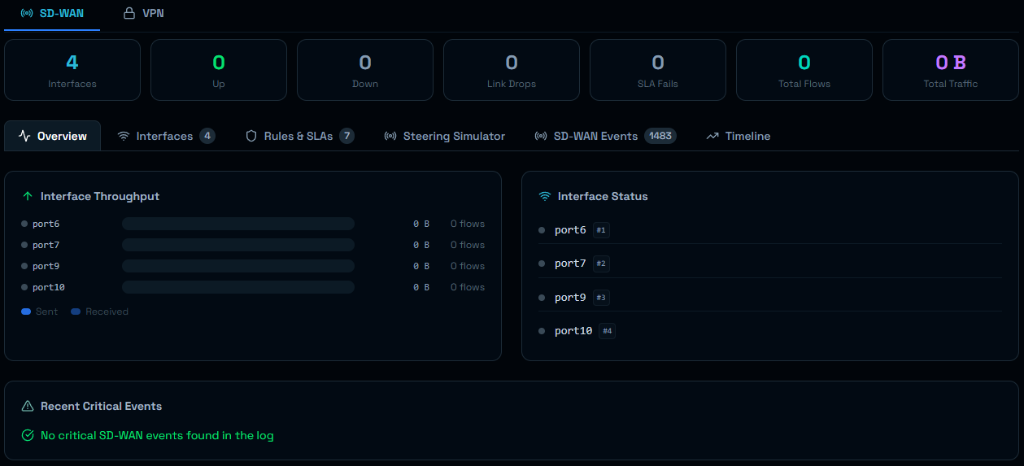

SD-WAN & VPN Remote Access Dashboard
Monitor interface throughput, tunnel negotiation statuses, SLA health rules, and routing decisions in a unified view.
Interactive SD-WAN Path Steering Simulator
FGT Config Visualizer dynamically maps routing policy decisions. Drag the slider below to simulate network latency spikes and watch the SD-WAN steering engine route traffic real-time.
